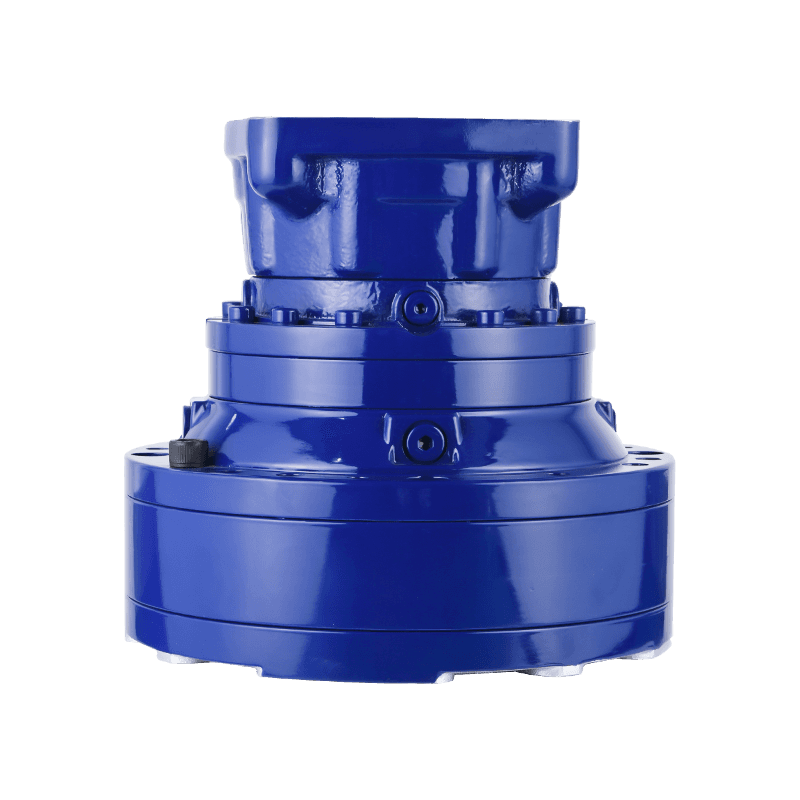

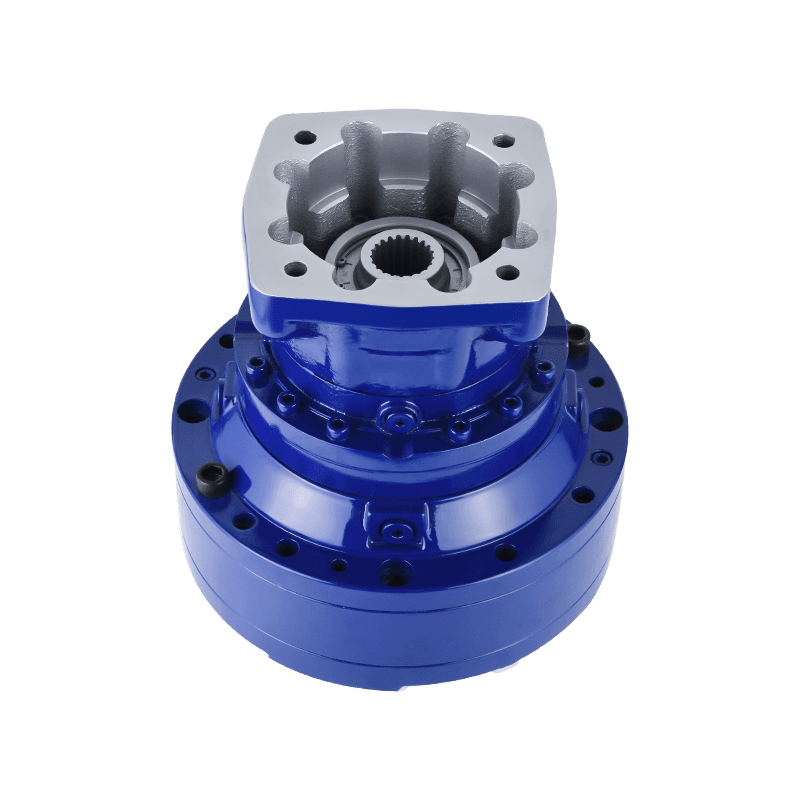

DYD Rotary Drilling Drive

DYD Rotary Drilling Drive

Product Characteristies

  • Compact, space-saving single-stage or multi-stage planetary gear structure
  • Sturdy bearing structure to support some weight of the equipment
  • Easy installation
  • Easy oil change
  • Built-in multi-disc parking brake
  • Low noise operation
PREV: DFB Swing Gears
NEXT:DYC Monorail Crane Drive
Message Form

Introduction

Dimension

Technical Data

DYD series rotary drilling drive is mainly composed of planetary reducer and flow distributor. It has the characteristics of small radial size, light weight, large torque, output shaft can withstand large radial and axial external force, high starting efficiency, high low-speed stability, high transmission efficiency, low noise, and good economy. Therefore, it is widely used in construction engineering, railways, highways, ships, petroleum, coal mines, metallurgy and other machinery. Depending on the requirements, the user can choose to have a brake and a distributor with integrated valves for various functions.

For each type of product, users can contact us when they have overpower requirements. After special treatment of the material and surface of the moving parts of the planetary reducer, the performance and transmission power of the product can be greatly improved.

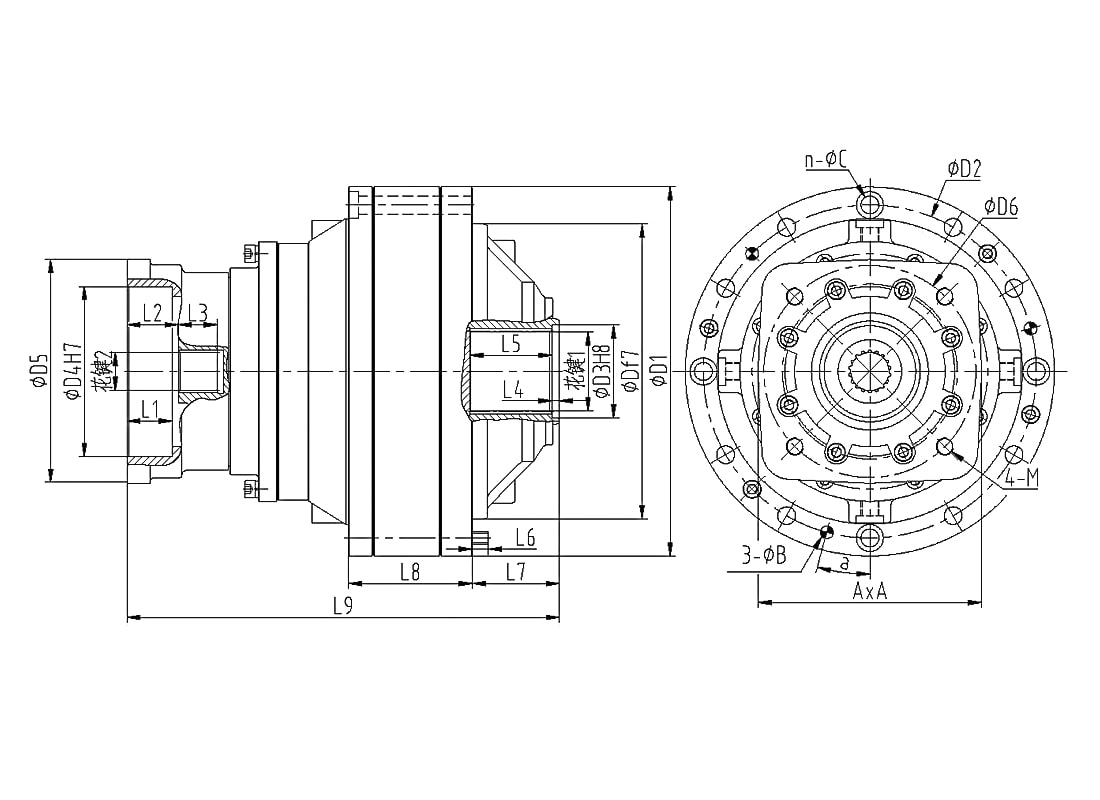

Model D D1 12-φC  D2 D3 D4 D5 D6 4-M a 3-φB spline2(DIN5480) AxA L1 L2 L3 L4 L5 L6 L7 L8 L9 spline1
DYD309 278 348 12-φ17 314 88 160 / 200 4-M16 15° 3-φ12h6 N 45-2-21 211x211 43 48.5 37 7 77.5 15 82 117 408 A 80x74(DIN5482)
DYD2250 340 399 15-φ17 370 102 180 265 224 4-M16 12° 3-φ16h6 N 50-2-24 / 33 46 44 7 78 16.5 93.5 115.5 459 A 100x94(DIN5482)
DYD3002 370 445 35-φ15.5 400 122 180 261 224 4-M16 / / N 50-2-24 / 42 60 61 15 90 / 117 124 635 N 120-5-22(DIN5480)
Model Ratio Rated Output Speed Max. Torque Hydraulic Motor
DYD309 16、21.8、25.4、28、32.6 40r/min 16000N.m 3500N.m
DYD2250 17.5. 20.2、22.2、25.6. 30.7 40r/min 25000N.m 4000N.m
DYD3002 17.8、19.9、22.8、24.2、30.7 40r/min 50000N.m 4000N.m

Contact us

About
Ningbo Dongyu Hydraulics Co., LTD
Ningbo Dongyu Hydraulics Co., LTD
Ningbo Dongyu Hydraulics Co., LTD (hereinafter referred to as Dongyu Hydraulics) was established in 2016, as professional China DYD Rotary Drilling Drive Manufacturers and Custom DYD Rotary Drilling Drive Suppliers, Dongyu Hydraulics is a high-tech enterprise integrating R&D, design, manufacturing and sales of hydraulic piston motor, hydraulic gearbox and hydraulic winch, etc., headquartered in Ningbo, China.
Main products of Dongyu hydraulics:
Inner curve radial piston motor, planetary gearbox, hydraulic winch: "DYH" series planetary gearbox, "DMS" series inner curve radial piston motor, "GFT" series travel gears, "GFB" series swing gears, "DYNJ" series hydraulic winch and other non-standard customized products.
Dongyu Hydraulics has a professional technical and design team to provide you with customized products and services.
Dongyu Hydraulics products are widely used in construction machinery, metallurgical industry, mining machinery, cranes, shipping, ports, petroleum, agriculture, tunnel engineering and other fields.
Dongyu Hydraulics, focusing on technological innovation and talent introduction, has more than ten practical invention patents; and has an independent registered trademark.
Dongyu Hydraulics has a modern production plant and modern manufacturing equipment, inspection and testing equipment, such as Mazak horizontal machining center, Okuma double turret type turning compound machine, Okuma double spindle double turret type five-axis seven-link turning compound machine, Chien Wei inner curve grinder, etc.
Dongyu Hydraulics has established a complete quality management system and strictly abides by the ISO9001 quality system certification. Dongyu Hydraulic products have been all over the country and exported to Europe, North America and other countries.
Certificate Of Honor
  • High-Tech Enterprise Certificate
  • Environmental Management System Certification
  • Occupational Health And Safety Management System Certification
  • Quality Management Systems Certification
  • A Special Winch Reducer For Rotary Drilling Rig
  • A Kind Of Wind Power Generation Pitch Drive Speed Increaser
News
Related products
Industry knowledge

What Makes DYD Rotary Drilling Drives Stand Out?

The superior engineering behind the DYD Series drive units ensures that they deliver unmatched performance. Each drive is carefully designed using advanced materials and cutting-edge technology. High-grade alloy steels and precision machining processes make the components both strong and durable, able to withstand the rigors of high-intensity drilling operations. The drives feature a state-of-the-art hydraulic system that provides smooth and powerful torque, allowing them to easily tackle the toughest geological formations.
In addition to superior manufacturing quality, the DYD Series drive units also feature innovative control systems that improve their operational efficiency. These systems allow for precise control of drilling parameters, enabling operators to optimize performance based on the specific requirements of each project. The result is increased drilling speeds, reduced equipment wear, and lower operating costs.
Another key differentiator is the versatility of the DYD Series drive units. They are suitable for a wide range of applications, from small residential projects to large industrial operations. Whether you are drilling for water, oil, gas, or geothermal energy, the DYD Series drive units provide the power and precision needed to get the job done efficiently.

How Do DYD Rotary Drilling Drives Enhance Operational Efficiency?

One of the main ways the DYD Series drives improve efficiency is through its advanced hydraulic systems. These systems provide consistent and powerful torque, ensuring the drill bit can penetrate the toughest rock formations with minimal effort. The result is faster drilling and shorter project times. In addition, the hydraulic system is designed to operate at peak efficiency, which reduces energy consumption and fuel costs. The precise control provided by the DYD Series drives also plays a vital role in improving efficiency. Operators can adjust drilling parameters such as speed, torque and pressure with high precision, optimizing the drilling process for different geological conditions. This level of control minimizes the risk of equipment damage and reduces the possibility of costly downtime.
Maintenance is another area where the DYD Series drives excel in improving operational efficiency. The drives are designed with easy maintenance in mind, with accessible components and user-friendly diagnostic tools. Regular maintenance tasks can be performed quickly and efficiently, minimizing downtime and ensuring the equipment remains in optimal working condition. In addition, the durability and reliability of the DYD Series drives means they require less frequent maintenance than other drives, further reducing operating costs.

Why Choose DYD Rotary Drilling Drives for Your Next Project?

Performance is a key consideration for any drilling operation, and the DYD Series drive unit delivers outstanding results. Its powerful hydraulic system and precision control mechanism ensure that drilling operations proceed quickly and efficiently, regardless of the geological conditions. This high performance means faster project completion time and lower overall costs, making the DYD Series drive unit a smart investment for any drilling project.
Reliability is another key factor that makes the DYD Series drive unit stand out. Built with premium materials and advanced engineering technology, these drives are designed to withstand the harshest conditions and the most demanding applications. Its rugged construction and innovative features minimize the risk of equipment failure, ensuring that your drilling operations can proceed smoothly and without interruption. This reliability is backed by a comprehensive warranty and excellent customer support, giving you peace of mind and confidence in your investment.
Versatility is another reason to choose the DYD Series drive unit. These drives are suitable for a wide range of drilling applications, from water wells and geothermal projects to oil and gas exploration. Its adaptability and high performance make it an ideal choice for both small and large projects. Whether you are a contractor doing residential drilling or a company with large industrial operations, DYD rotary drill drives offer the flexibility and power you need to meet your specific requirements.
